Apex Polpo S55
Cold-forged / die-cast aluminium body
Matte electrostatic powder coating
Matte black / Matte white / Gun black / Gun silver
IP20
15° / 24° / 36°
3000K / 3500K / 4000K / 6000K / 2700+6000K
500 lm
5W / 7W / 8W
Ra > 98

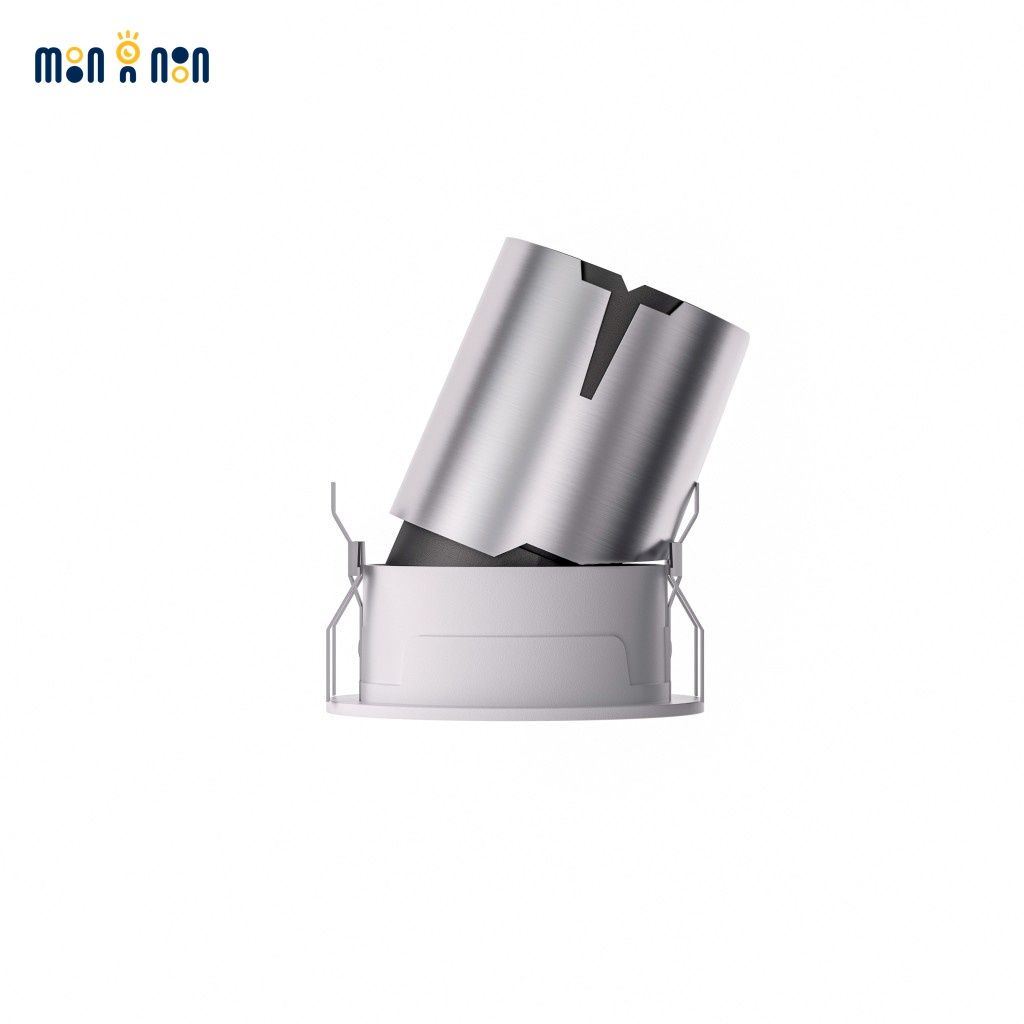

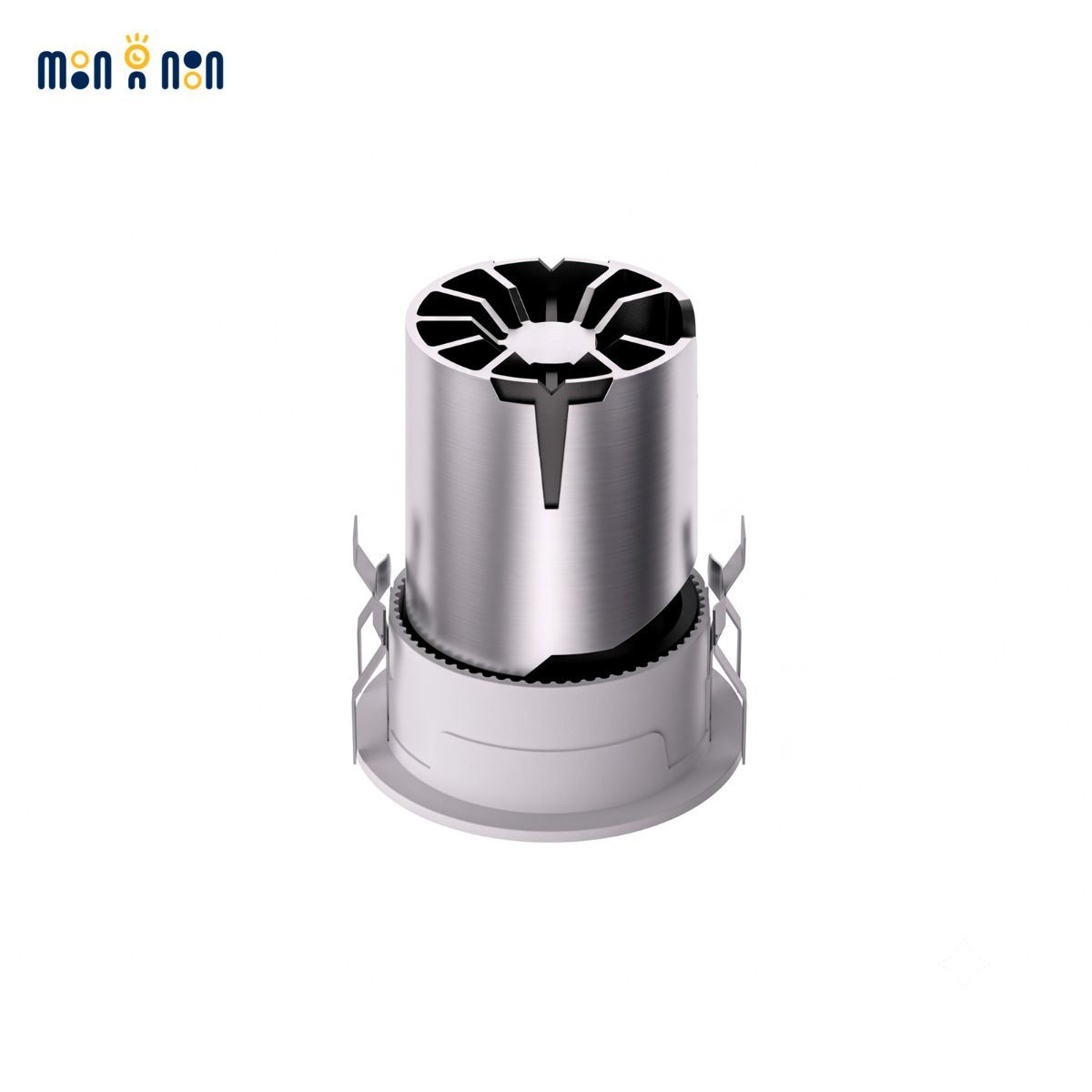

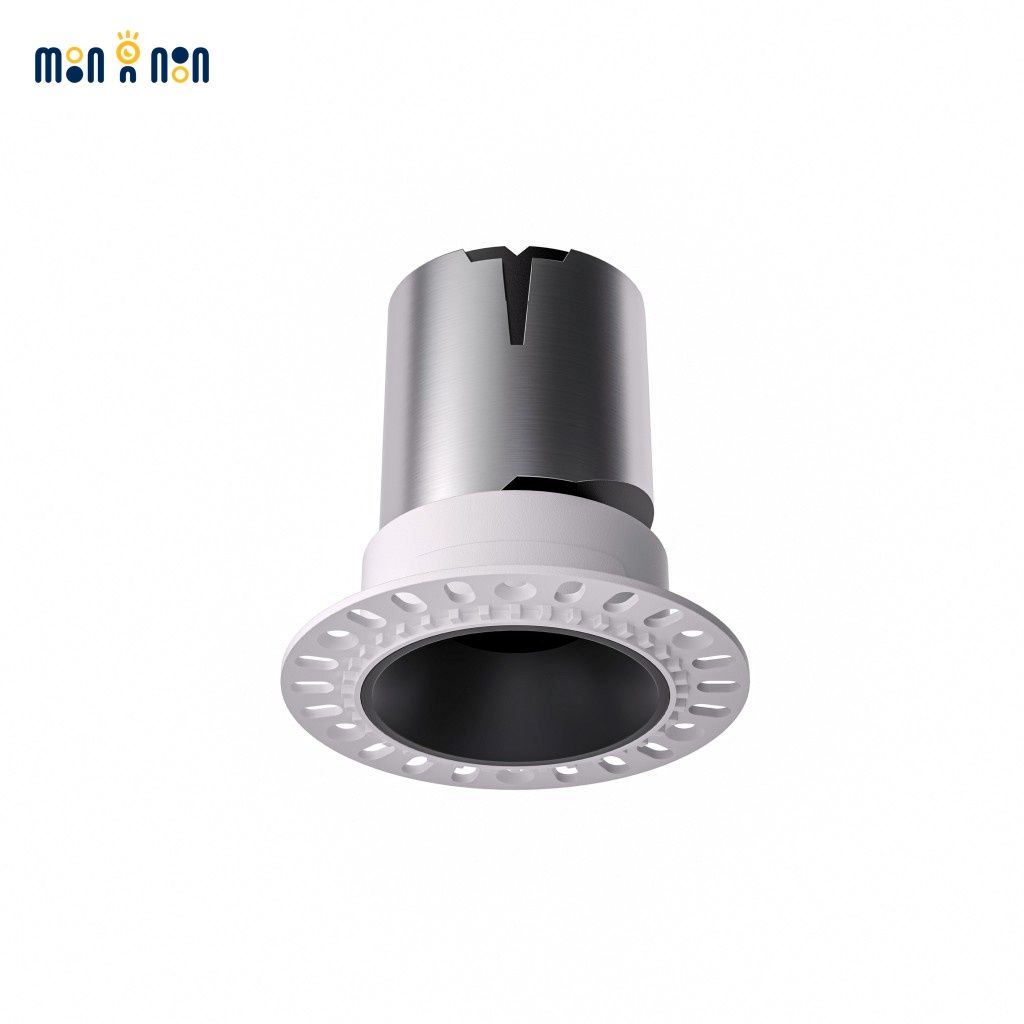

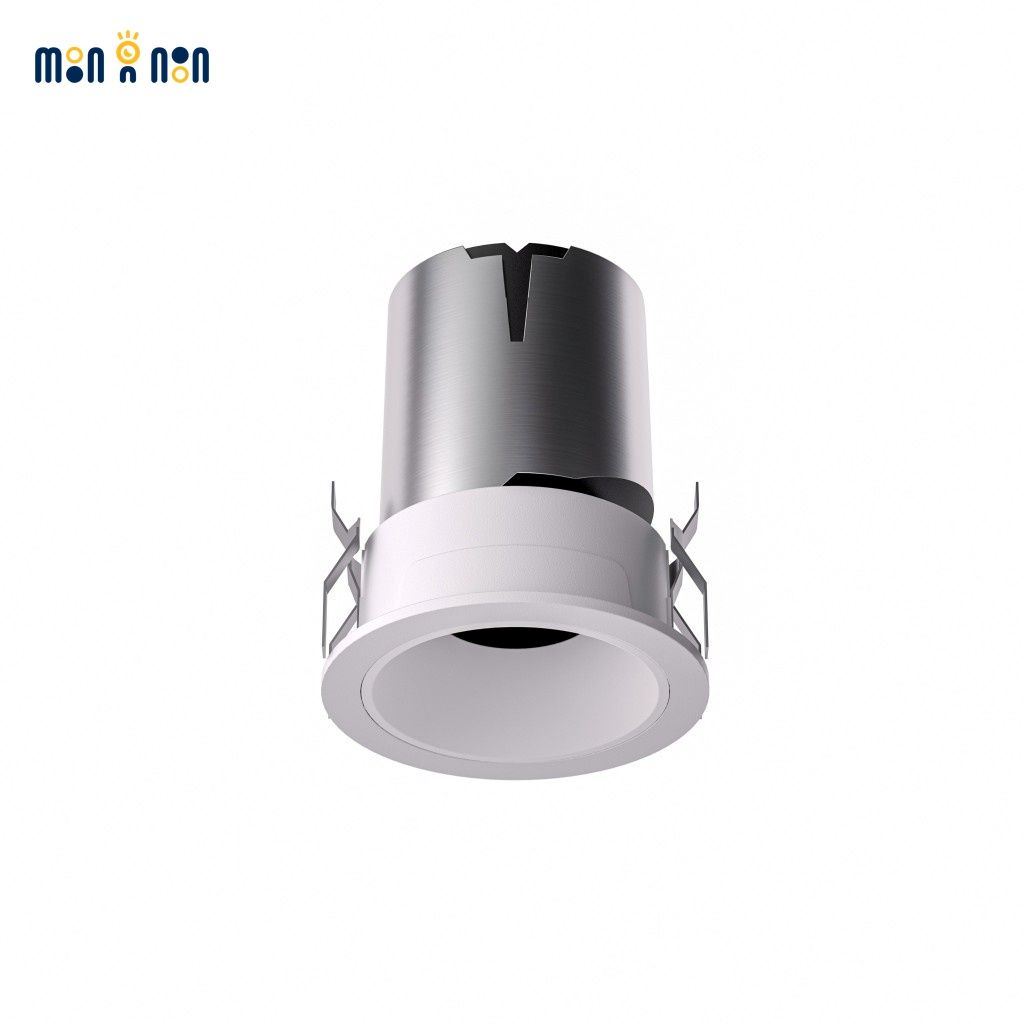

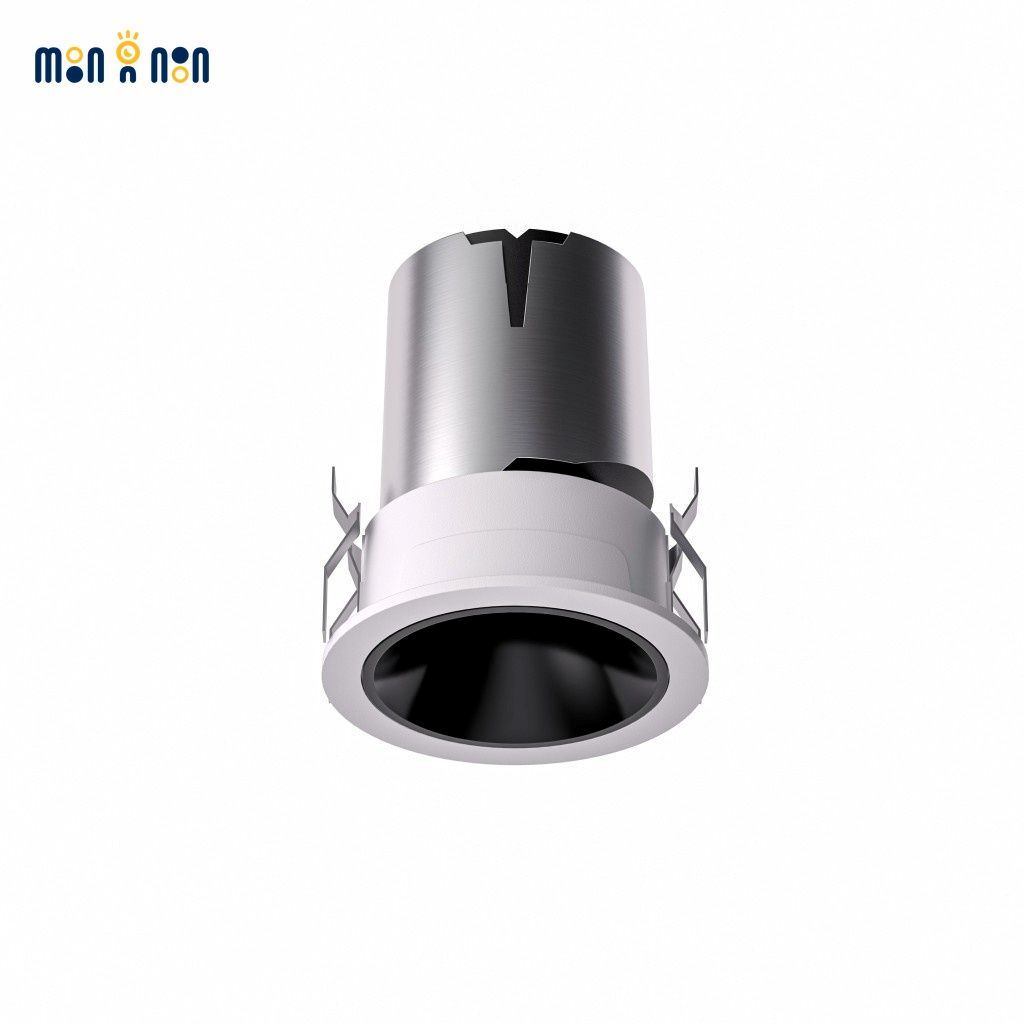

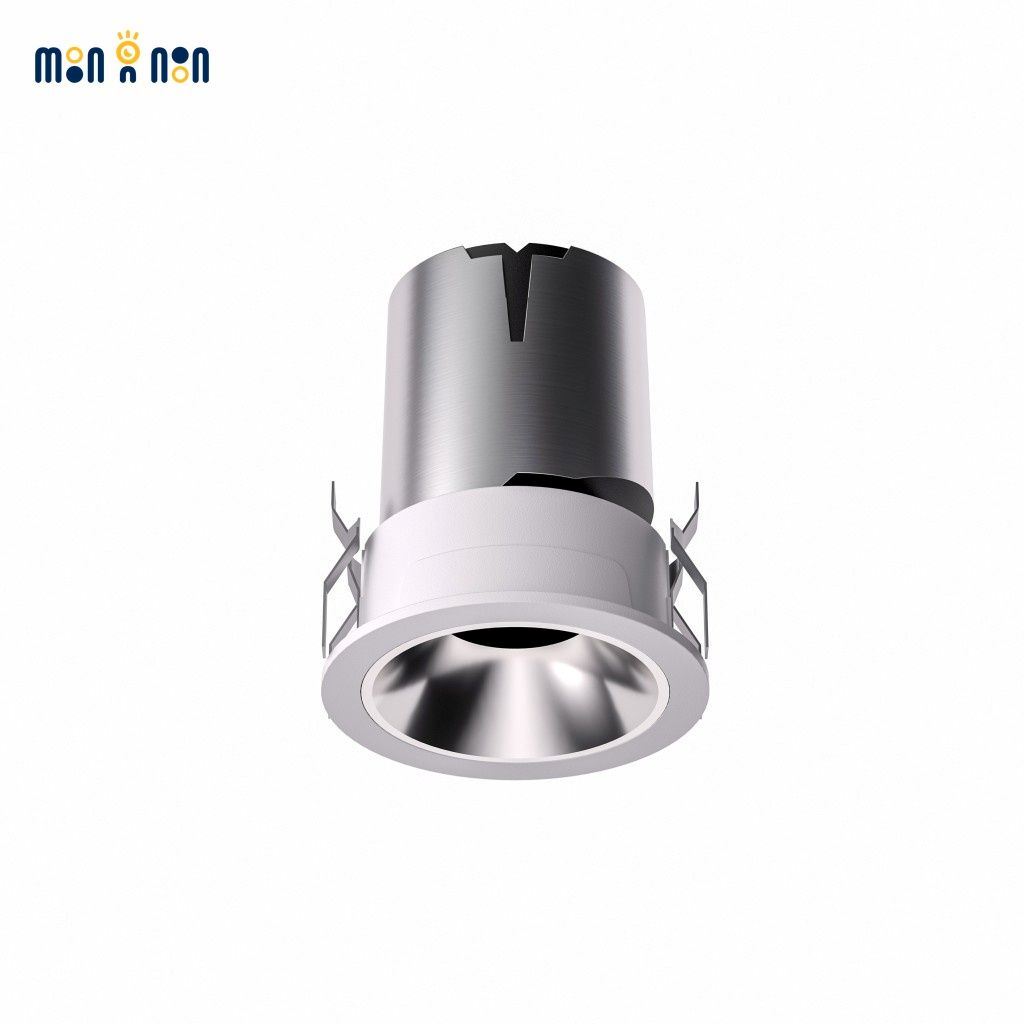

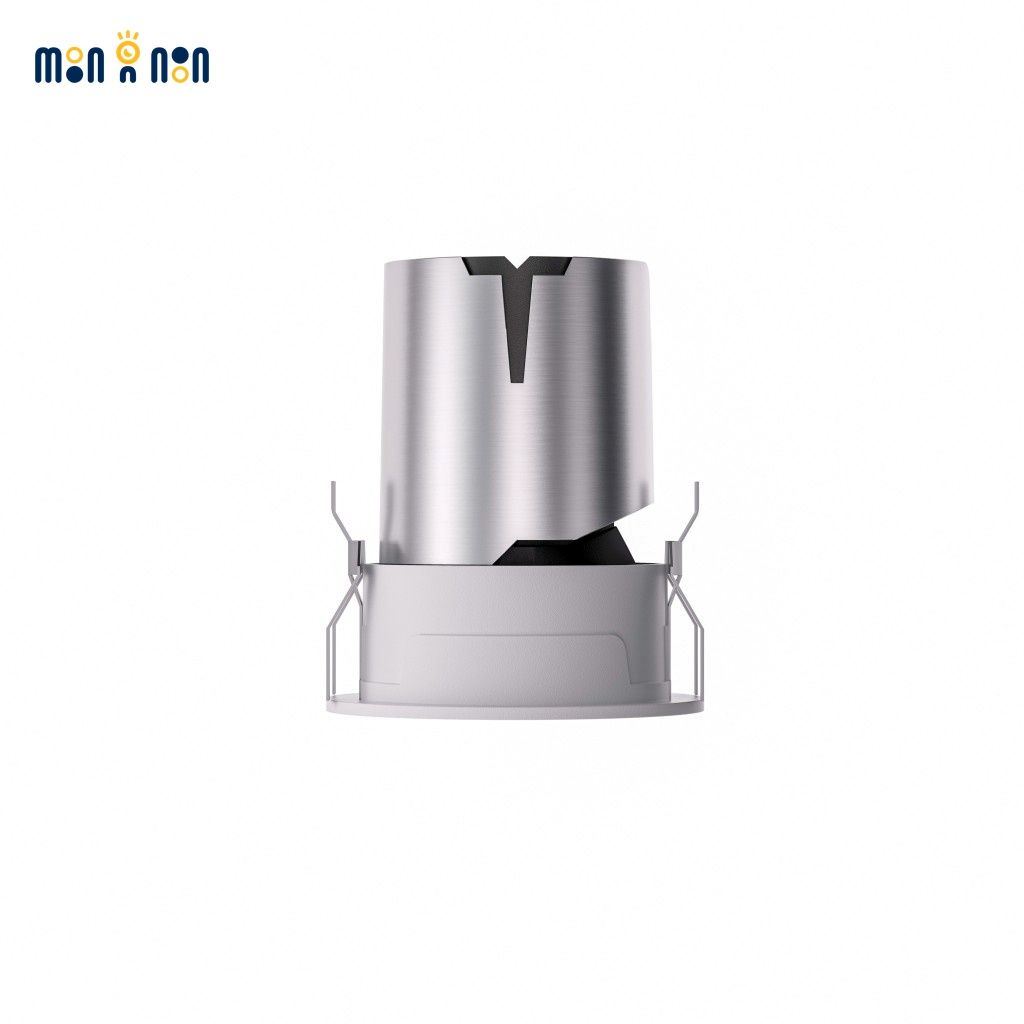

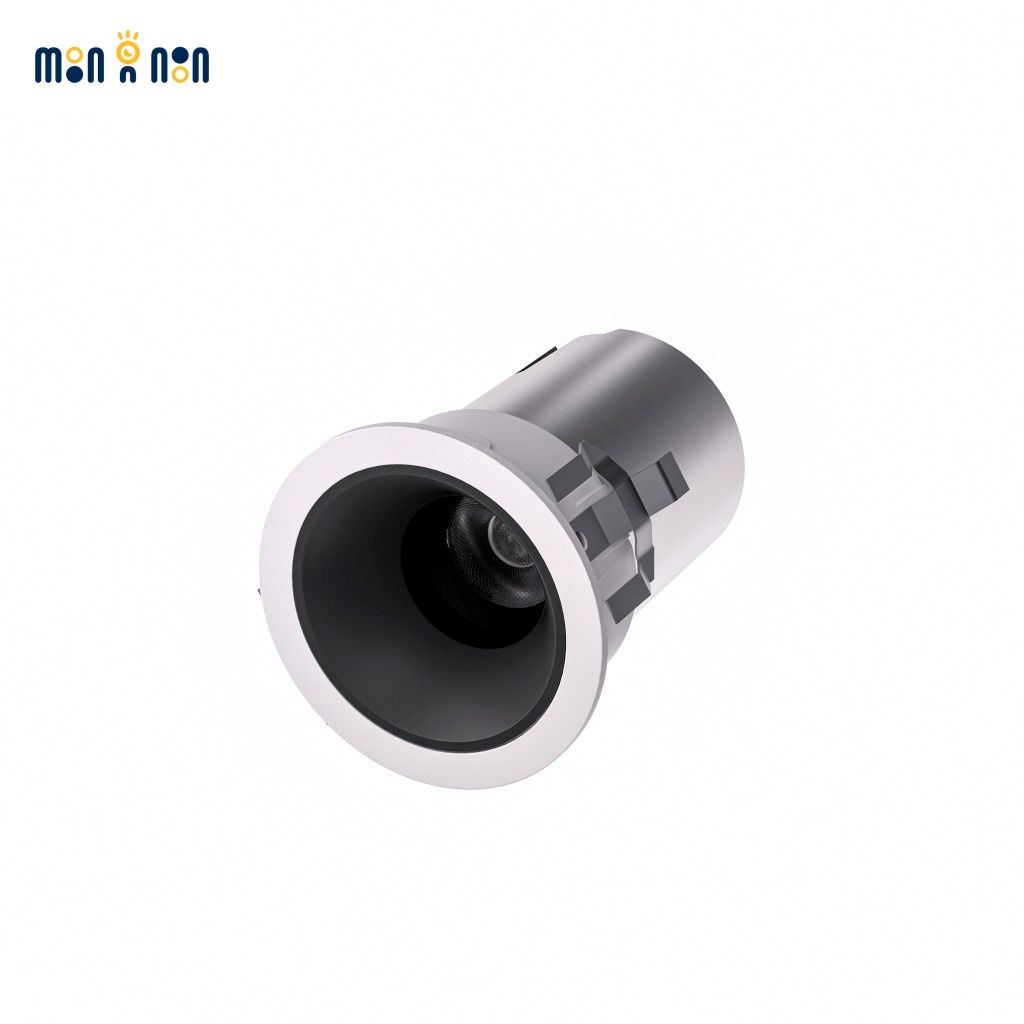

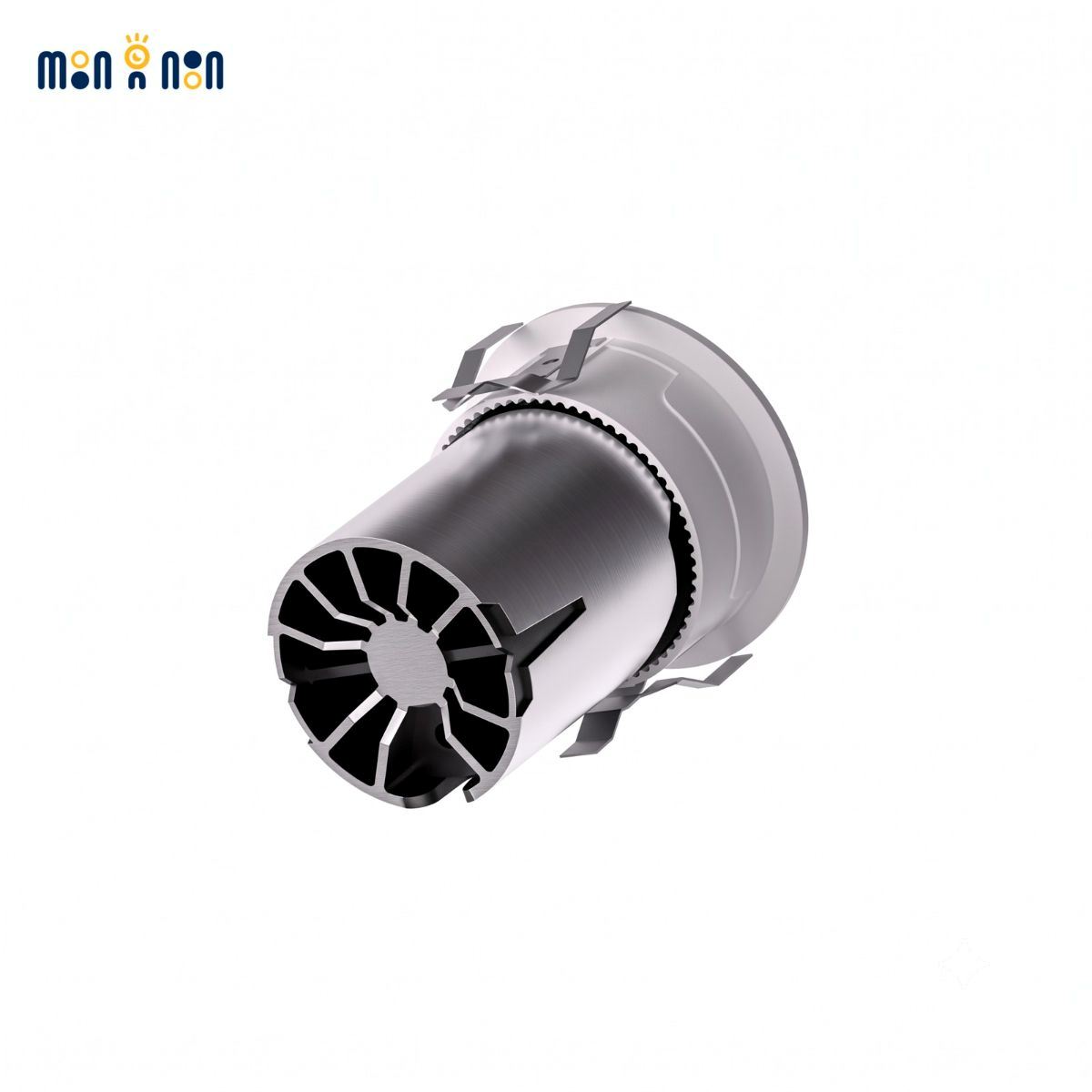

Apex Polpo S55 is a 55 mm recessed LED spotlight with a forged-aluminium wheel design. Round, square and twin versions with UGR<8 set the comfort benchmark.

  • Power: 5W / 7W / 8W · 500 lm · Ra > 98
  • Beam angle: 15° / 24° / 36°
  • Colour temperature: 3000K / 3500K / 4000K / 6000K / 2700+6000K

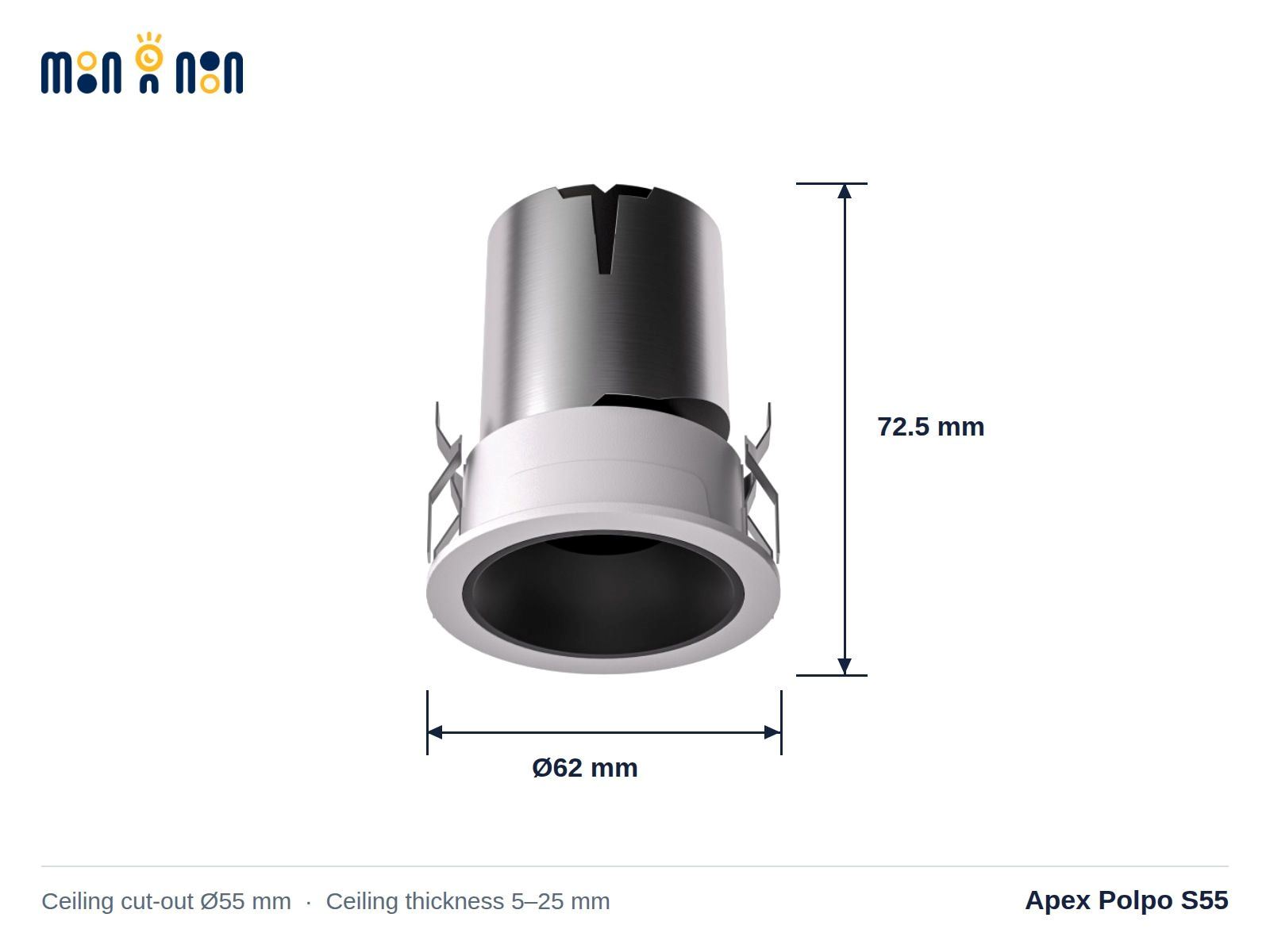

  • Ceiling cut-out Ø55 mm (twin: 103 × 52 mm) · body Ø62 × 72.5 mm · ceiling thickness 5–25 mm
  • Matte black / Matte white / Gun black / Gun silver · IP20 · 220–240V external LED driver

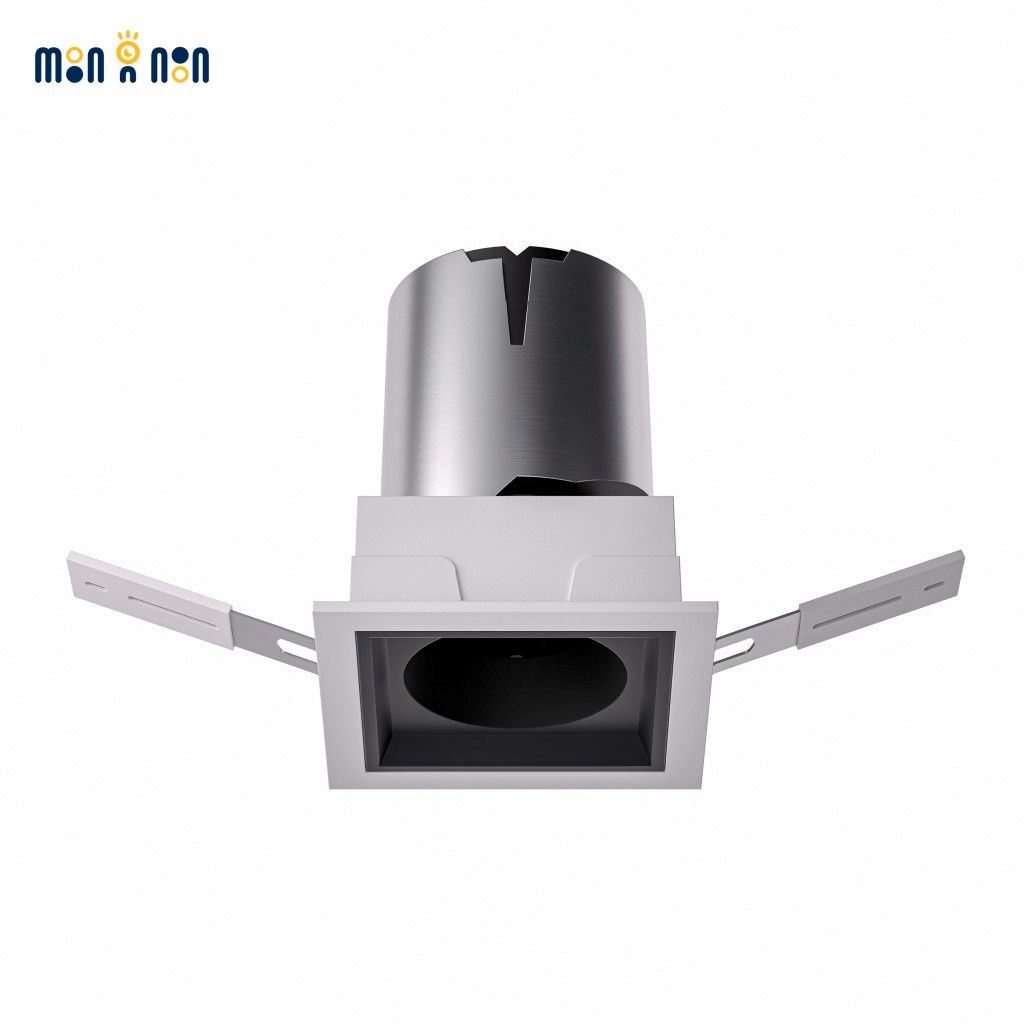

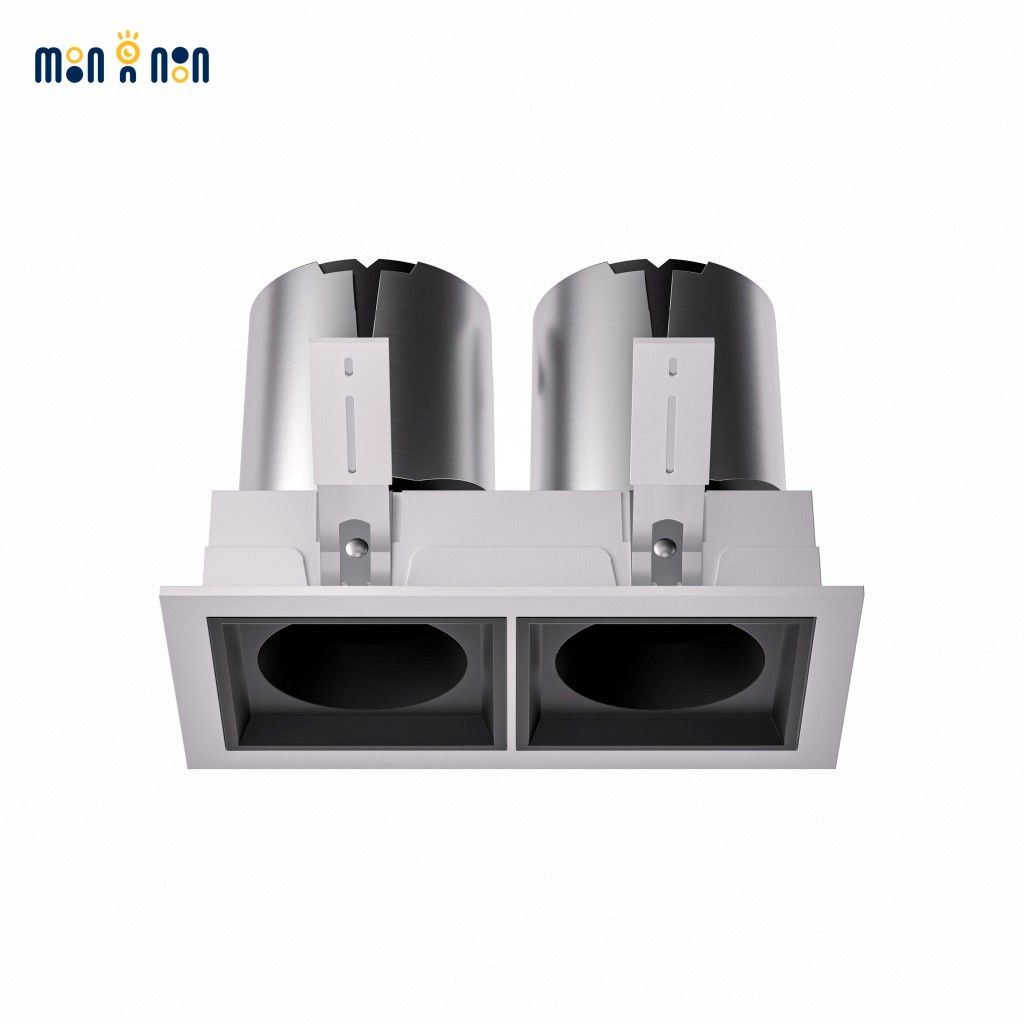

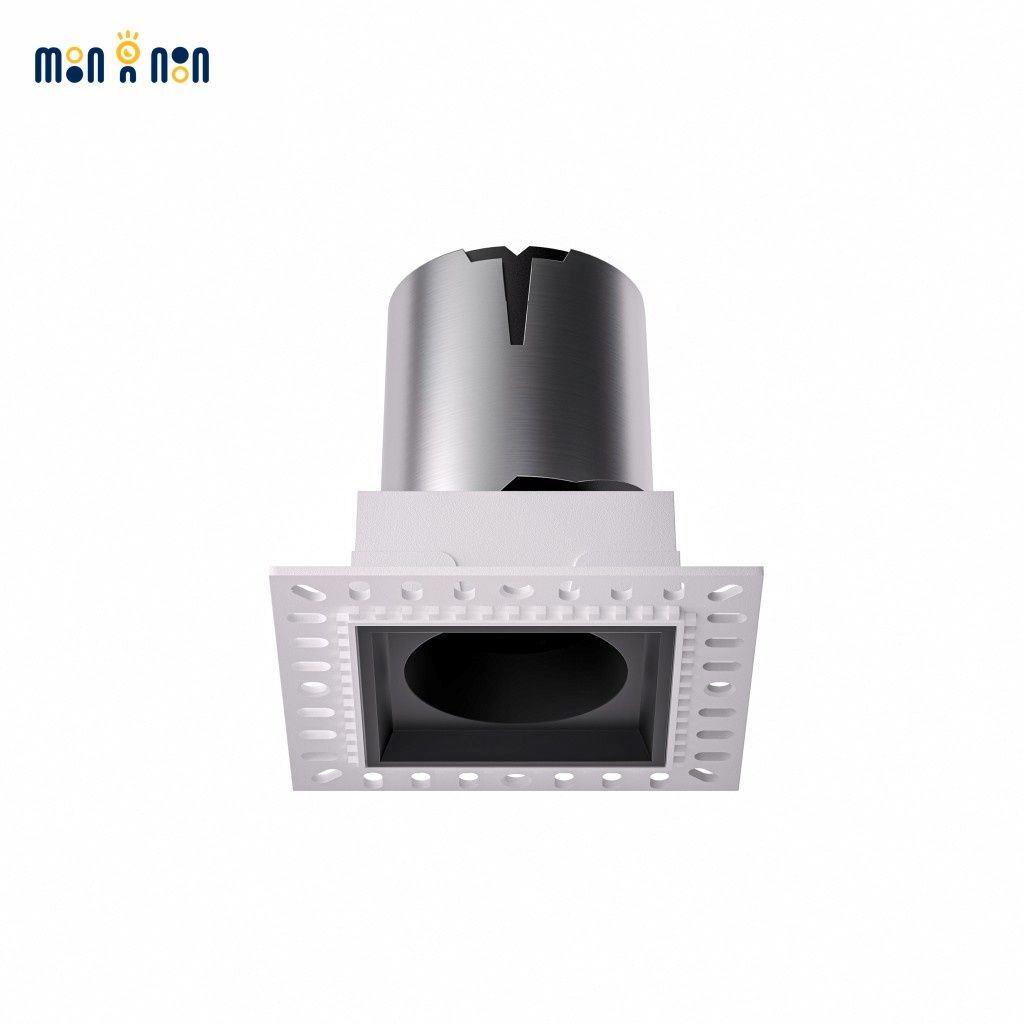

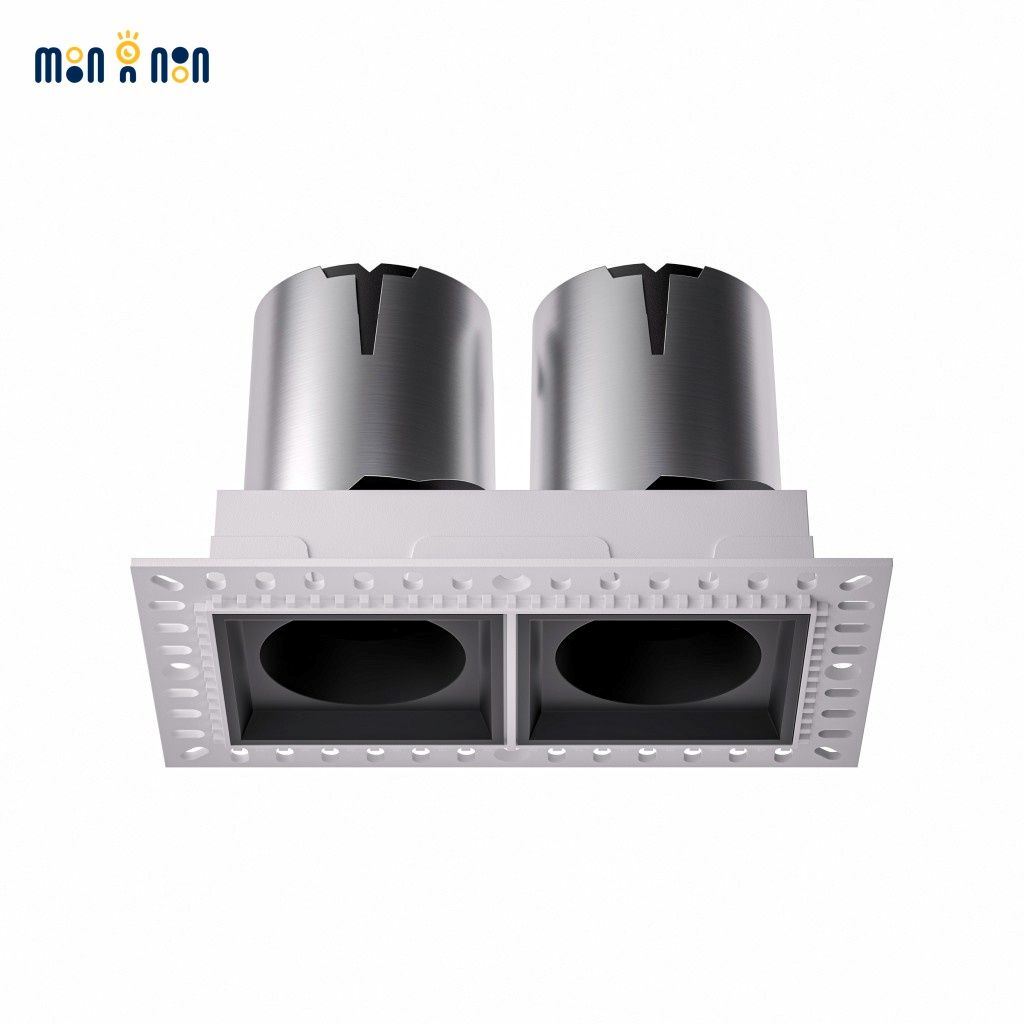

  • Round, square and twin-head versions; UGR < 8; no blue-light hazard

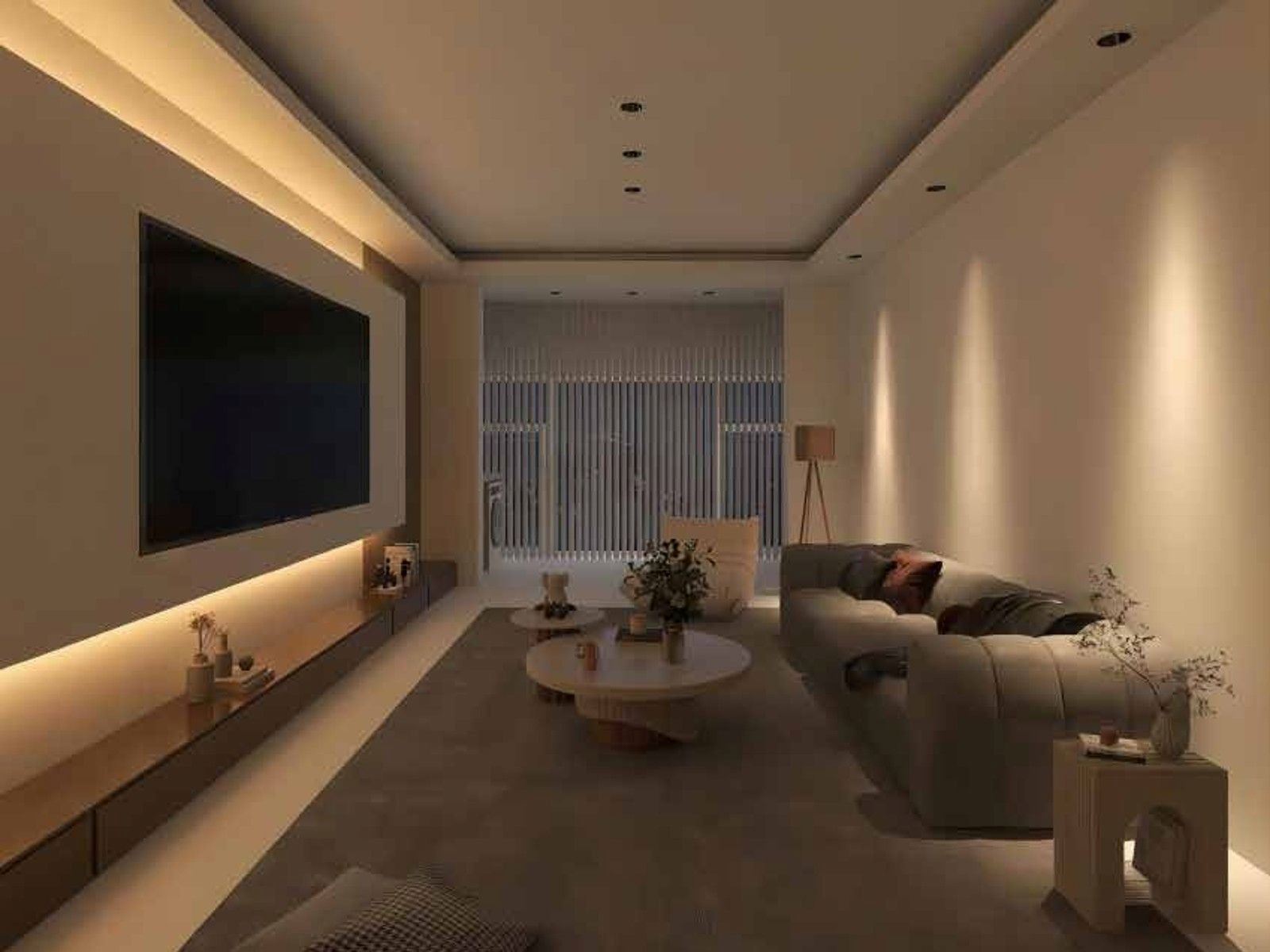

Uygulamalar
