Apex Polpo S75TS

Back Genel Bakış Ürün Detayları Uygulama Örnekleri Dökümanlar
Genel Bakış
Apex Polpo S75TS Apex Polpo S75TS Apex Polpo S75TS Apex Polpo S75TS Apex Polpo S75TS Apex Polpo S75TS Apex Polpo S75TS Apex Polpo S75TS Apex Polpo S75TS Apex Polpo S75TS
Ürün Detayları
Apex Polpo S75TS

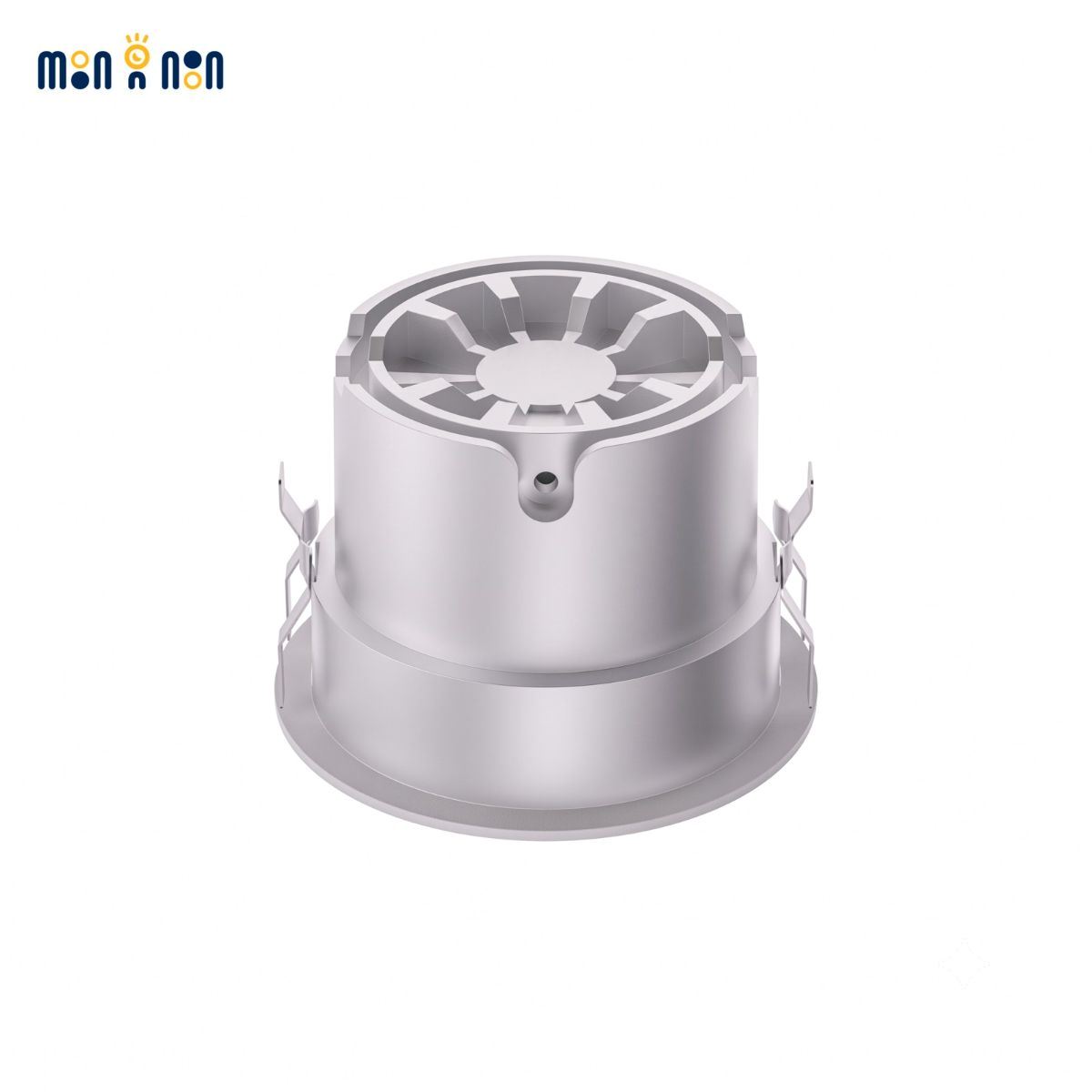

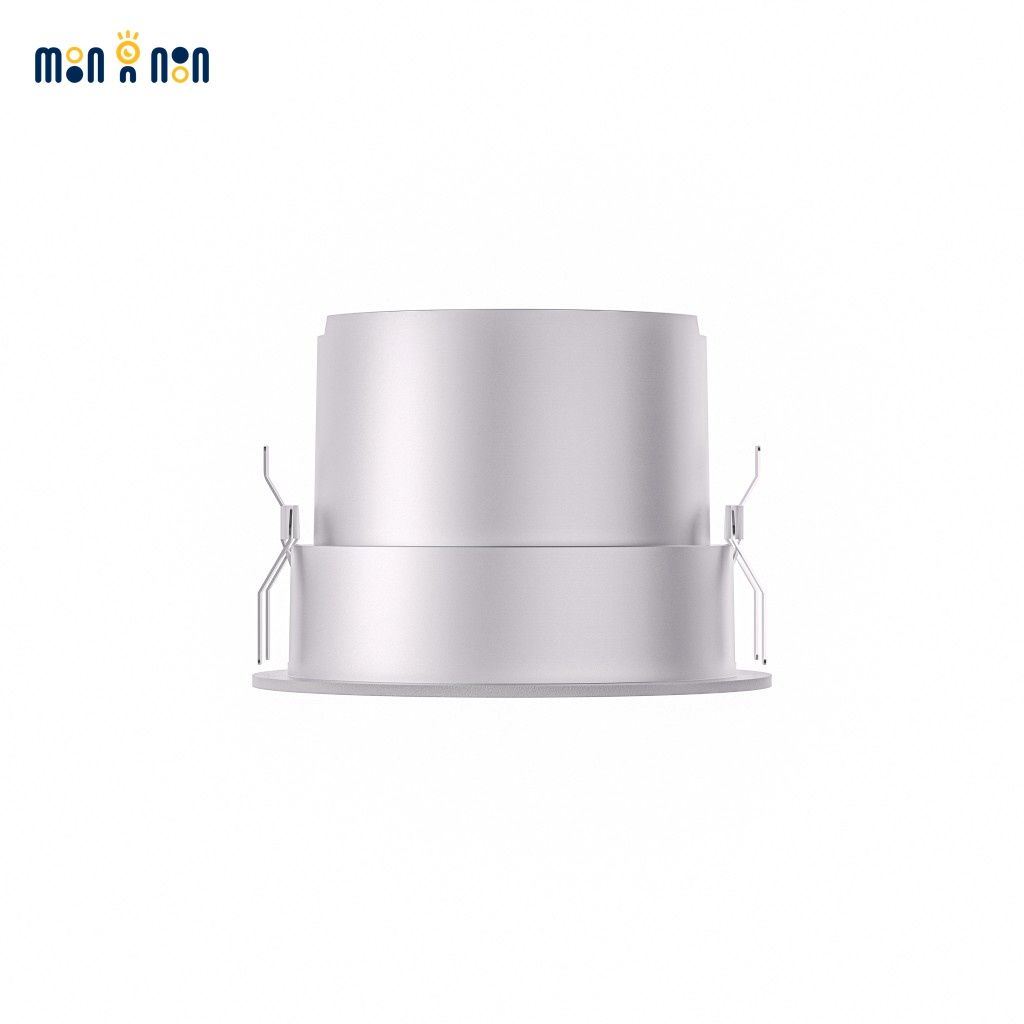

Cold-forged / die-cast aluminium body
Matte electrostatic powder coating

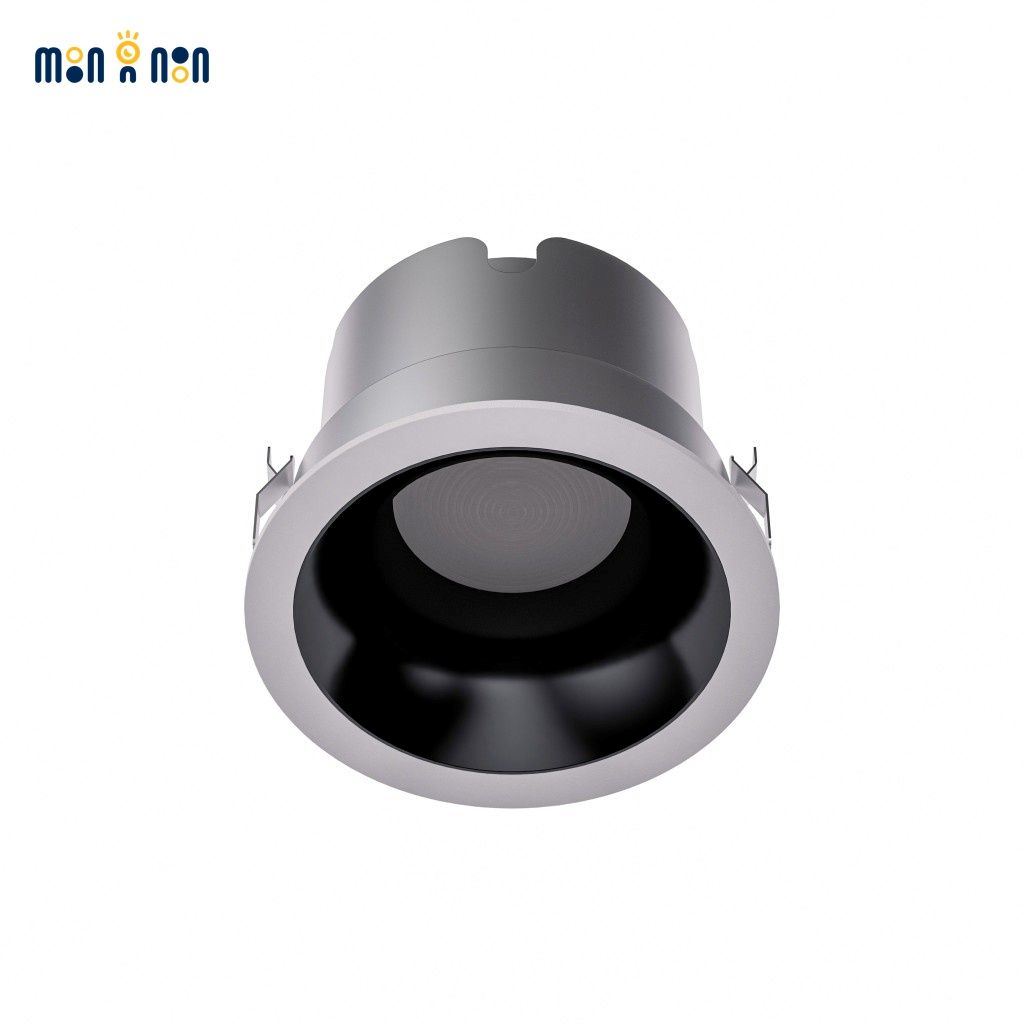

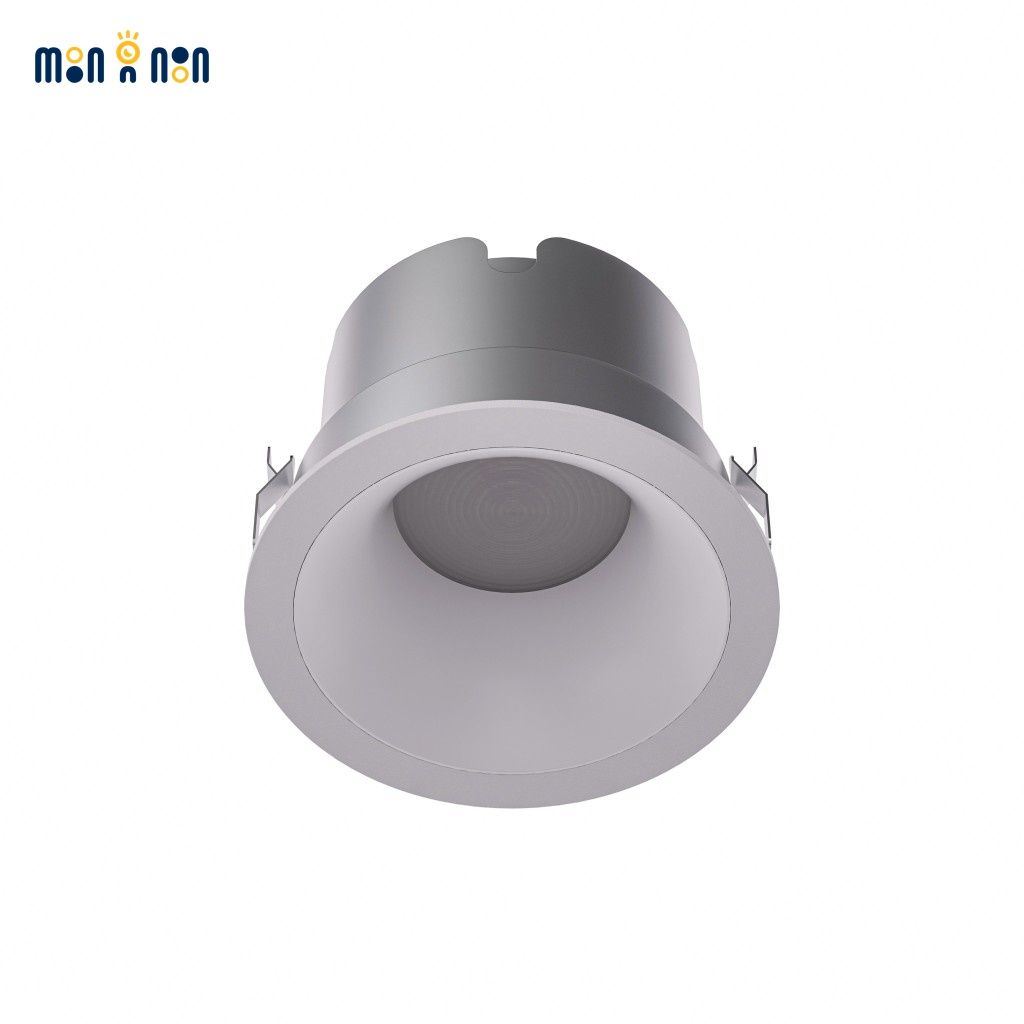

Black / White reflector
IP20

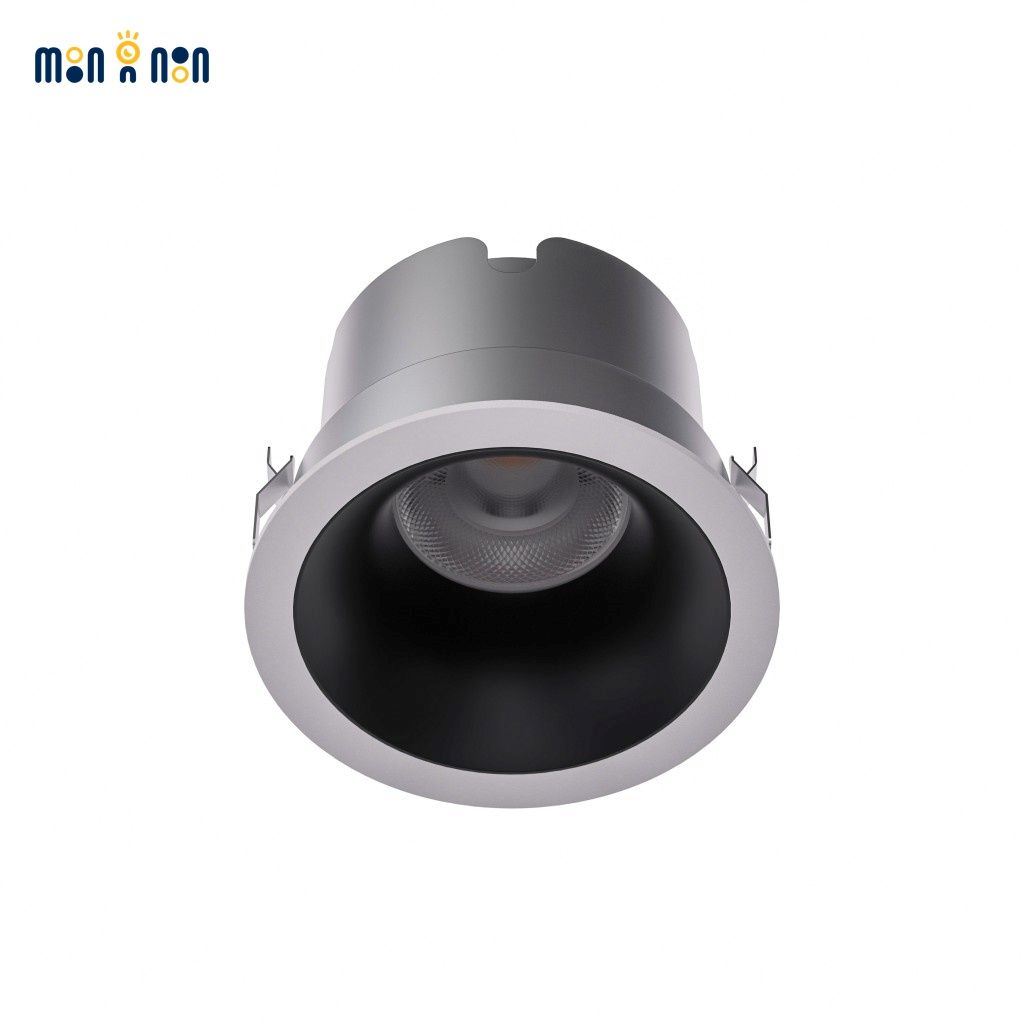

Spot + geniş açı
3000K / 3500K / 4000K / 6000K / 2700+6500K
750 lm
8W / 10W / 12W
Spot Ra > 98 · Downlight Ra > 93

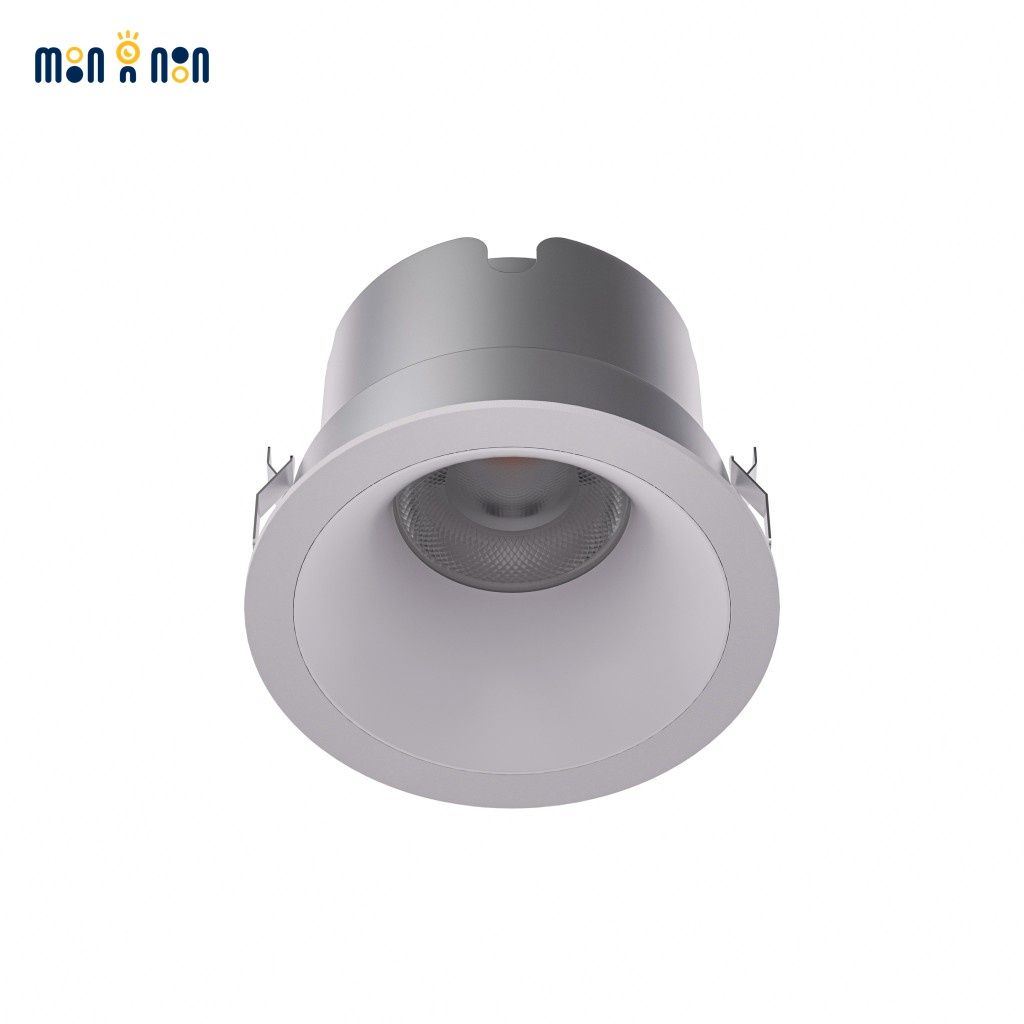

Apex Polpo S75TS is a 75 mm fixed recessed luminaire combining spot and downlight character in one body, finished with an automotive-grade paint process.

  • Power: 8W / 10W / 12W · 750 lm · Spot Ra > 98 · Downlight Ra > 93
  • Beam angle: Spot + wide-beam versions
  • Colour temperature: 3000K / 3500K / 4000K / 6000K / 2700+6500K

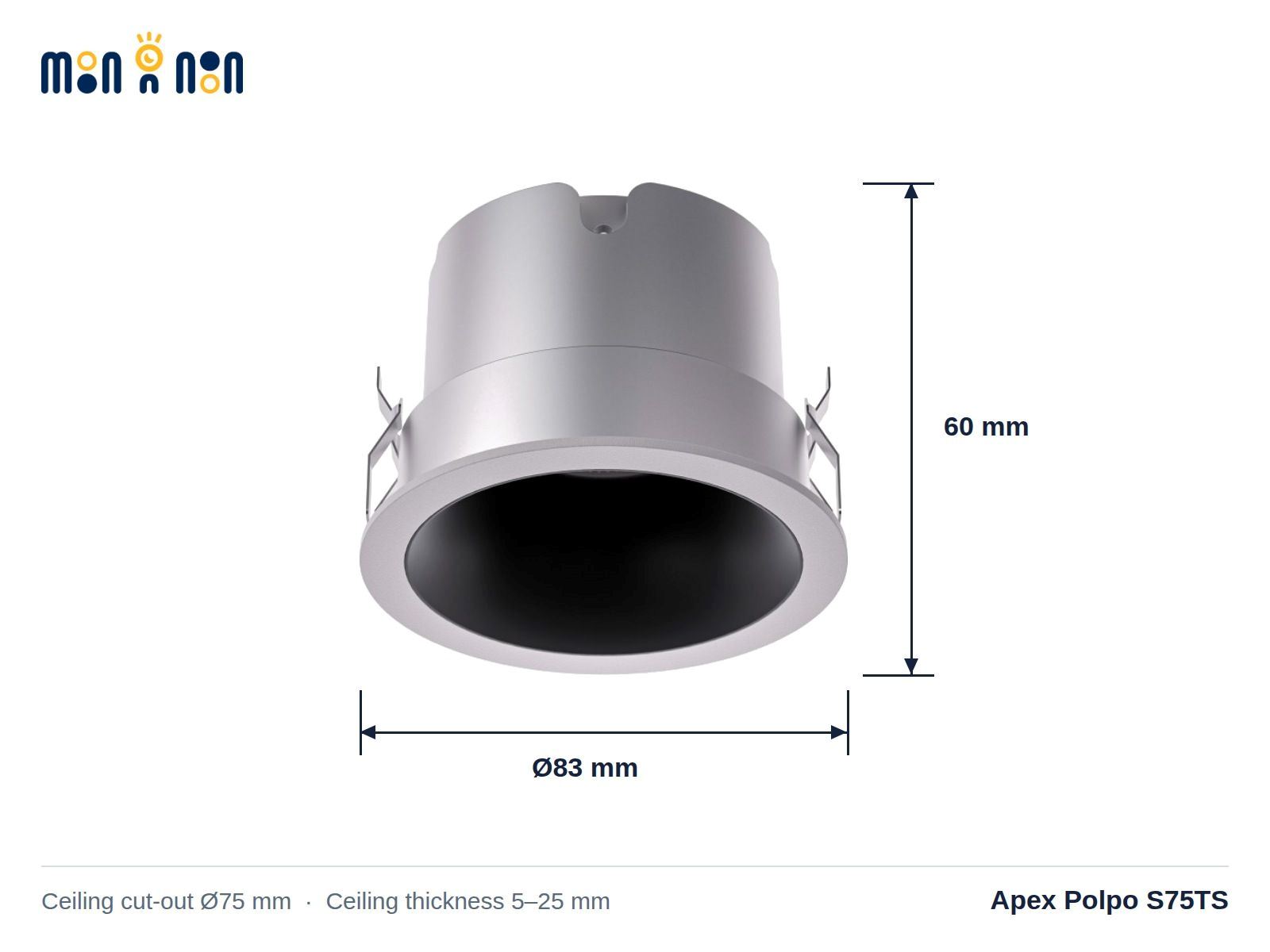

  • Ceiling cut-out Ø75 mm · body Ø83 × 60 mm · ceiling thickness 5–25 mm
  • Black / White reflector · IP20 · 220–240V external LED driver
  • Automotive-grade paint process; fixed (non-adjustable) trim

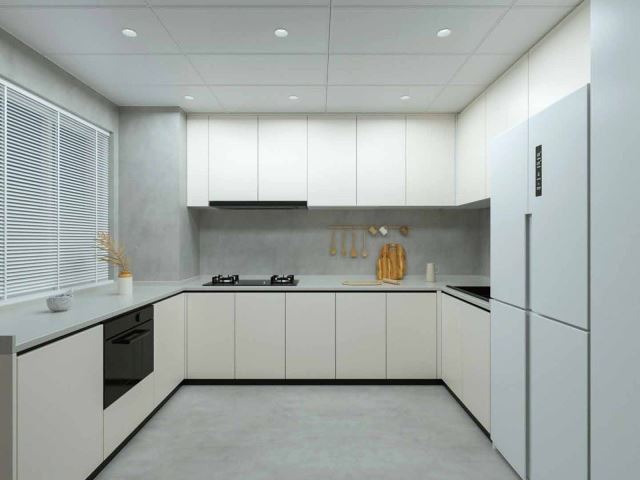

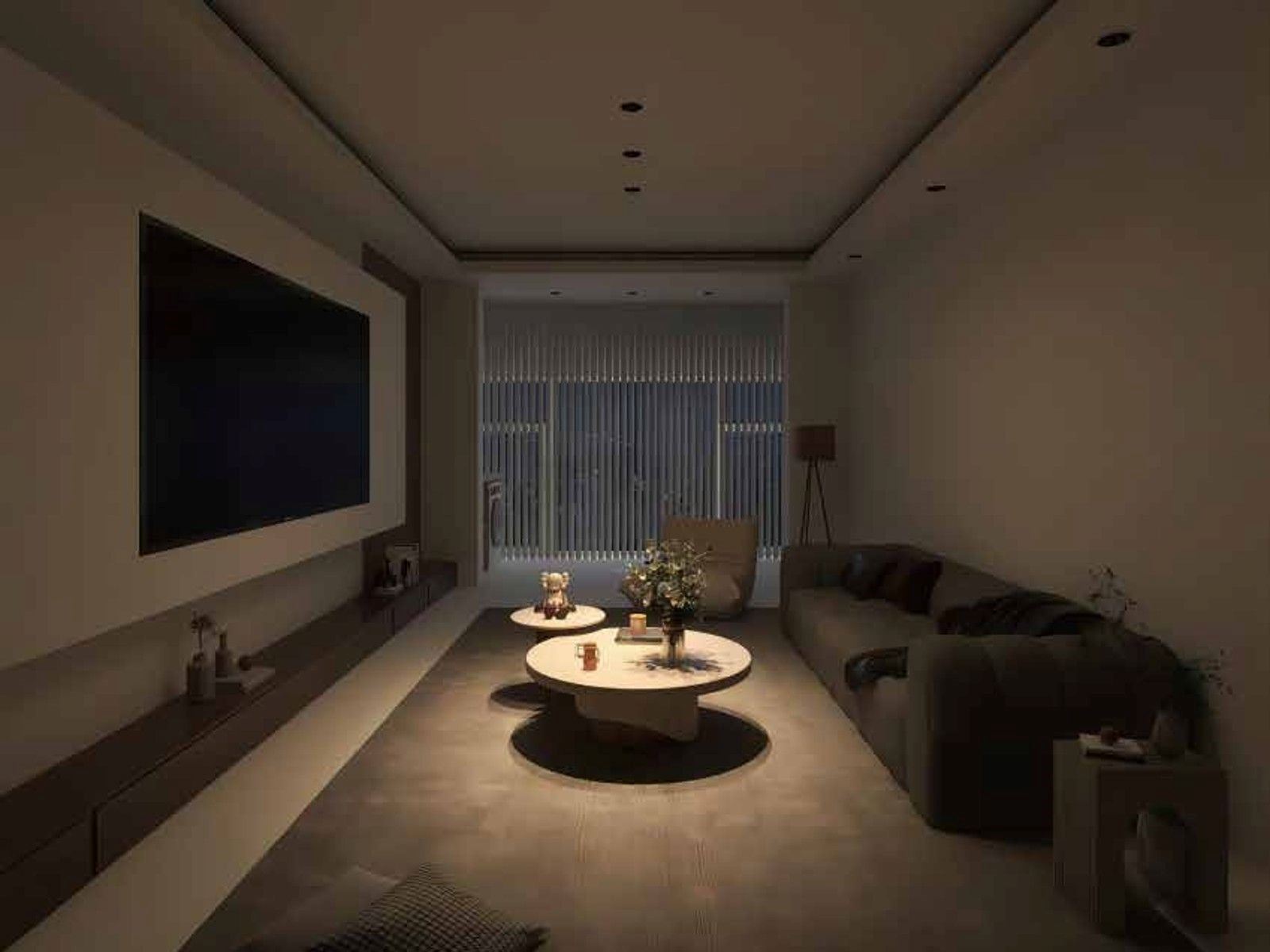

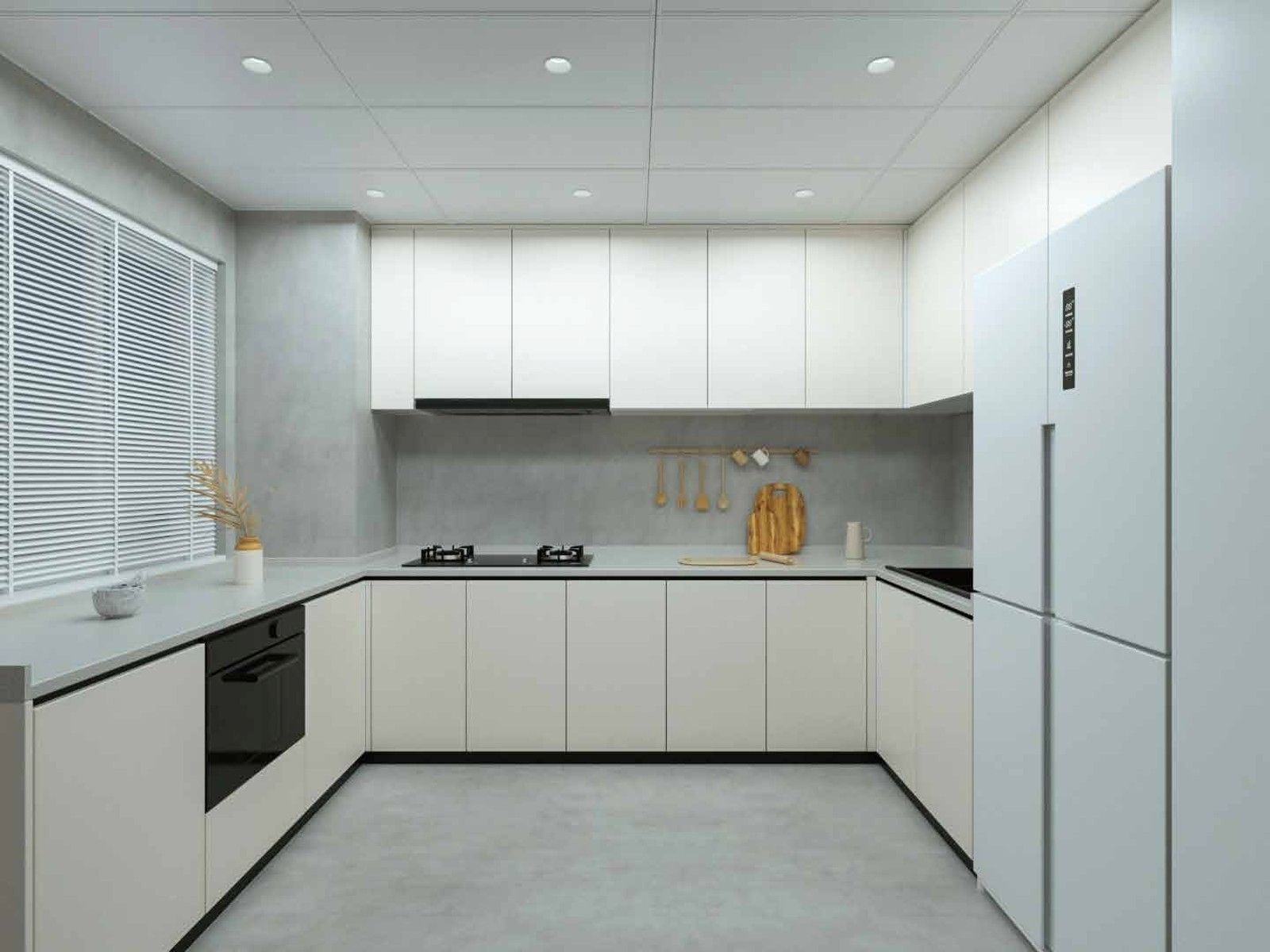

Uygulamalar
Apex Polpo S75TS Apex Polpo S75TS
Dökümanlar
downloadApex Polpo S75TS downloadApex Polpo S75TS
